Engine Whistle - Intake Boot

[simonlpearce]

Ok so the problem i had was that under load between 1.5k and 2k revs i got this really annoying whistling sound, which when i put on a new air intake got worse. So from this i figured that it must be something to do with the intake tubing, i also found a lot of help on *cough* another forum.

Basically over time the following parts perish due to excessive heat in the engine bay, the parts below are what you require to sort the problem out. This and a decent socket set, a hell of a lot of patience and a few hours to figure out just how to get the circlips undone (they put them in the most fiddly of places!)

03 - Rubber Boot 13541438761 = £14.05 + VAT (Stelership)

06 - Tube Elbow 13541438759 = £7.07 + VAT (Stealership)

Ok so first you need to remove either stock or aftermarket airfilter, this is very simple. All you have to do is remove the MAF from the filter housing then simply undo the two bolts holding the housing to the chassis.

Next you need to remove the MAF which again is held in place by circlips and the sensor which simply unclips. Further down you need to remove the Rubber Boot by undoing the circlips again and another sensor (not sure what it does) give it a good tug to get it out. The Rubber Boot connects to the tube elbow via a simple connecting ring this will also need to be removed simply by undoing the circlips.

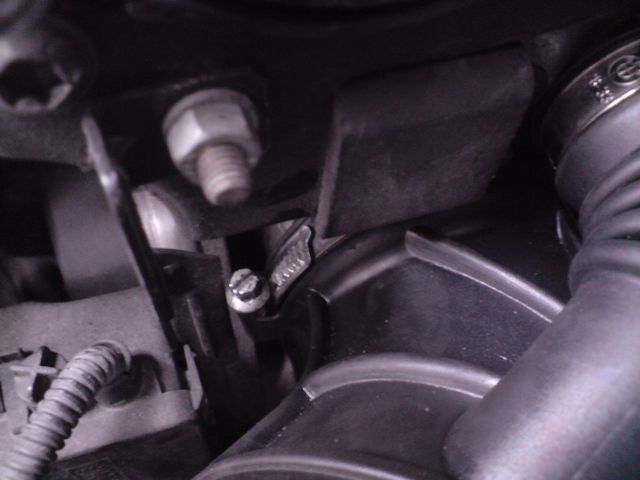

To get to the circlips holding the Tube Elbow to the intake manifold you will also have to remove another part (not sure what it is) pictured below. Keep this somewhere clean and free of dust or contaminants as it looks like it is important.

As you will see just behind in the picture above the Tube Elbow is still attached, by removing the part pictured above it gives you a little more room to play with when trying to get at those last few circlips. This part simply has a sensor on top which just unclips, and two hex bolts securing it to the engine, remove and store safely.

NB - Be careful not to drop anything whilst doing this as its a PITA to get things out from in the splash tray!

Actually removing the Tube Elbow took me a good hour to figure out and a lot of cramp and contorsion. My arms and elbows bent in ways they never have before when trying to get at the last 2 circlips.

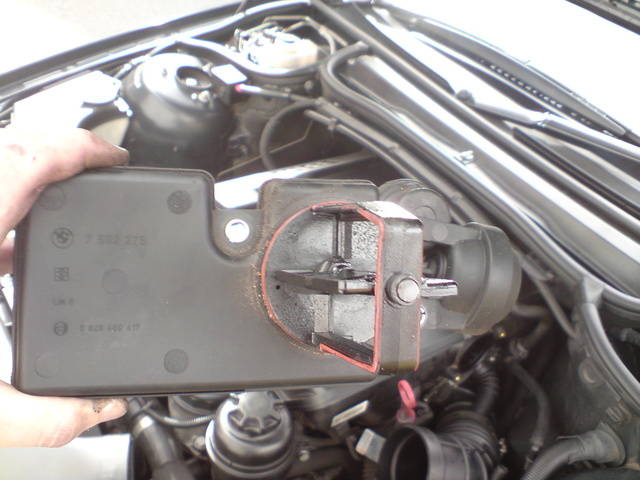

The next picture shows everything removed.

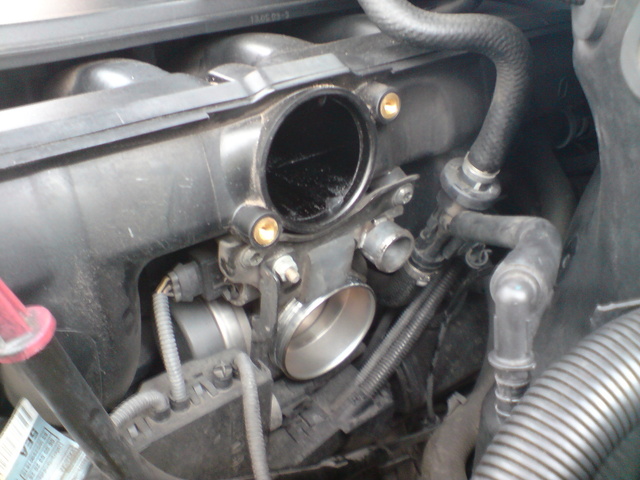

This picture will show you exactly what was causing the whistle on the intake, so well worth checking your intake boots even if you havent noticed this whistle. This is the part that will give you temporary tirrets and you will lose some skin from knuckles. It is possible to get to the last 2 circlips just be patient and try from lots of different approaches.

From here things are a little easier as you simply have to rebuild what you have just taken off, but make sure you locate the circlips so that it is easier next time you have to remove anthing, see pics. As you will see i have now located the screw heads so they face upwards. On removal they were all facing down so i could not see how to get at them and had to come from underneath.

And finally a picture of it all assembled, as you will find its a lot easier to put back together than it is to remove. Simply reattach the Tube Elbow to the manifold using 1 x large circlip and 1 x small circlip, insert the connecting ring to the Tube Elbow and secure with circlip, attach Rubber Boot to other side of connecting ring and secure with circlip and finally attach MAF to rubber boot and secure with curclip making sure to plug in MAF Sensor.

All that is left to do after this is reattach the important looking part including the sensor, reattach your MAF including sensor, reattach the other sensor that you had to give a good old tug to get out (dont know what it does) and finally reattach you aftermarket or stock air filter. All of which simply use circlips (yes im sick of writing the blooming word circlip)

I do have a full compliment of pictures if anyone needs them as i know this is a little vague for a DIY, its really common sense though you will see what i mean when you come to do it.

PM me if you have any questions or need a little advice with anything.

[MattBMW]

SI nice little write up m8 well done....do the parts have to be purchased from a stealer or can they be purchased form the likes of GSF or Euro carparts?

[simonlpearce]

SI nice little write up m8 well done....do the parts have to be purchased from a stealer or can they be purchased form the likes of GSF or Euro carparts?

I did go into GSF and gave them the part numbers from realoem and they didnt have anything, not sure about Euro Car Parts didnt try. Stealers seemed pretty reasonable plus i needed some fog light surrounds which they did for £3.52 each inc VAT so i was happy.

[Dicky]

Good write up mate, I will check mine at the weekend

Glad to hear you got the fog light surrounds

[simonlpearce]

Yeah they were much needed, just need to prep and paint them now, along with my rear diffuser - Oh and lets not forget calipers

[DaveDunlop]

nice one mate, good write up to match.

[simonlpearce]

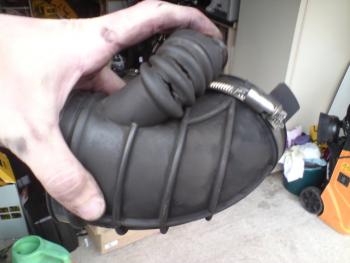

I have just noticed that the item in the first picture look mahooosive, almost the size of the engine! Its really not that big, its about 6" long and 3" wide (ooohhhh suits you sir)
